Description:
We have tri axle flatbed trailer for sale, which is mainly used for multimodal transportation of containers in ports, docks, highways, transfer stations, bridges, tunnels and waterways.
The main structure of the flatbed semi trailer is: the main beam, the side beam, the bottom plate, the suspension system, the axle, the tire, the brake system, and the working platform is the load-bearing part.
2 axle, 3 axle, 4 axle, 20 foot, 40 foot, 48 foot and 53 foot flatbed trailers for sale, the length and height of the vehicle can be adjusted according to actual needs.
YUHANG brand flatbed truck trailer will undergo strict performance testing and quality load testing by professional technicians to ensure that all products are of high quality.

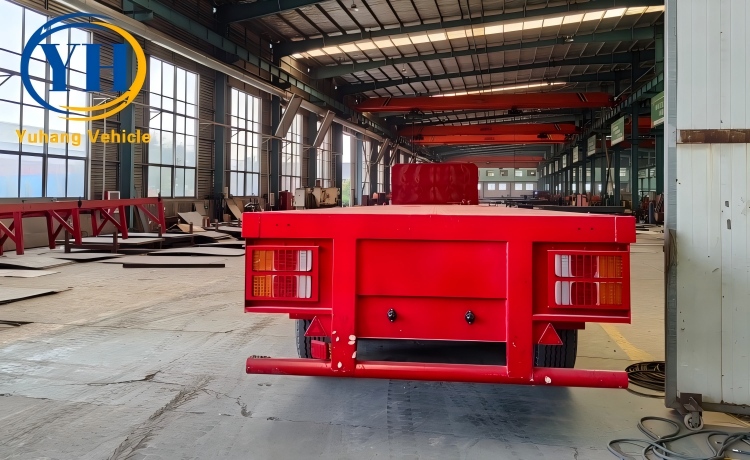

Tri Axle Flatbed Trailer for Sale

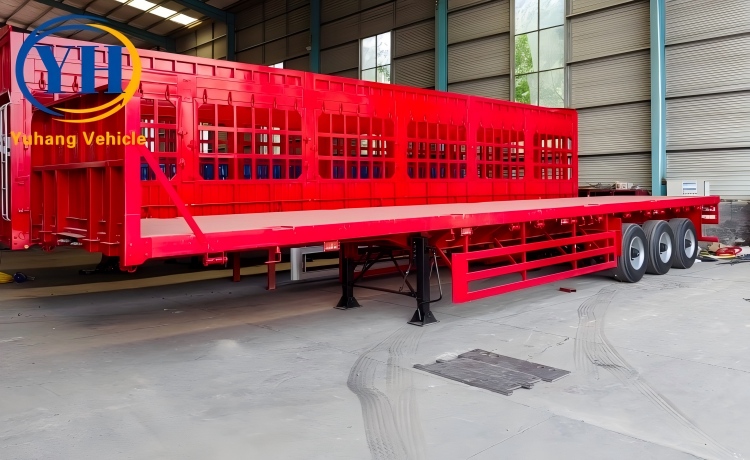

Tri Axle Flatbed Trailer for Sale

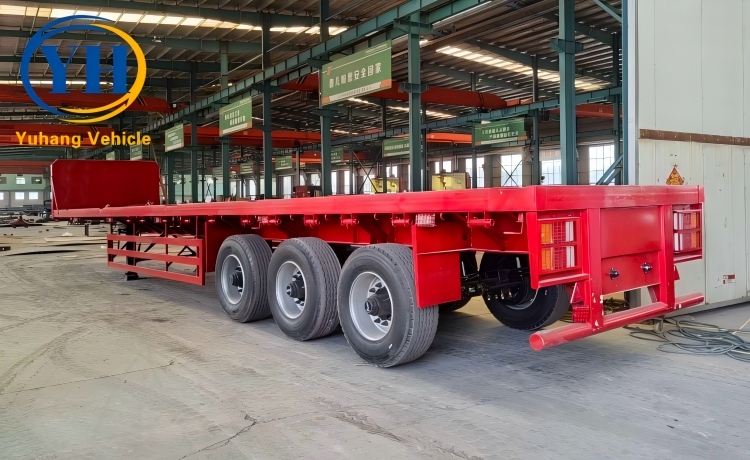

Tri Axle Flatbed Trailer for Sale
Advantage:
1. The main beam of the tri axle flatbed trailer is made of high-strength steel plate, whose yield strength is 2 times that of manganese steel, 3 times that of ordinary steel, and has a stronger bearing capacity.
2. With the mechanical leaf spring suspension system, the vehicle has a large bearing capacity, low investment cost, easy maintenance, and can adapt to more rough roads.
3. The whole vehicle adopts automatic robot welding technology, which automatically tracks the edge of the welding bottom plate, the welding seam is tight and firm, the welding quality is high, and it is environmentally friendly.
4. High-quality twist locks are installed at corresponding positions on the bottom of the vehicle to ensure safe and efficient container transportation.
5. All flatbed trailers will be sprayed with wax and covered with tarpaulins to prevent seawater and rain erosion and avoid rust.
About Us:
If you are interested in our flatbed semi trailer, container flatbed trailer, please send an inquiry to get the latest exclusive quotation.
Specification:
English Brand: YUHANG
Vehicle Name: tri axle flatbed trailer for sale
Dimensions: 12500*2500*1500mm
Weight: 7-10 ton
Main Beams: Q345B, upper flange: 14mm, middle: 8mm, down: 16mm
Platform: 3mm carbon steel
Landing Gear: JOST brand
Axle: 3 axle*13t/16t*FUWA/ BPW/ HUAJIN brand
Tire: 11.00R20, 12.00R20,12R22.5, 385/65R22.5 Triangle/Hankook/ Bridgestone brand
Suspension: mechanical suspension or air suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100(w)mmx12(thickness)mmx12 layers
Twist Locks: 4/8/12 sets
King Pin: JOST brand 2.0 or 3.5 inch
Light: LED light
ABS: optional
Brake System: WABCO Valve
