Description:
The 48 foot flatbed container trailer is a vehicle that is specially used to transport containers and bulk goods between terminals or ports. In simple terms, it is a 48 foot platform.
Every year, we supply a large number of flatbed truck trailers, such as: 20ft, 40ft, 45ft, 48ft and 53ft, to more than 50 countries, such as: Philippines, Sierra Leone, Zambia, Malawi, etc.
Our flatbed trailers have a load capacity of 30-100 tons for you to choose. Different load levels, different configurations and specifications have different prices.
YUHANG has a professional technical service team that can design and customize flatbed semi trailer according to your special transportation needs, saving you a lot of time and cost.

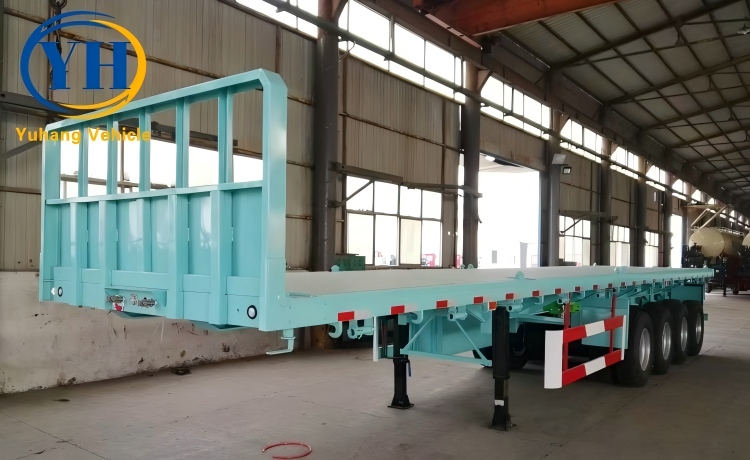

48 Foot Flatbed Container Trailer for Sale

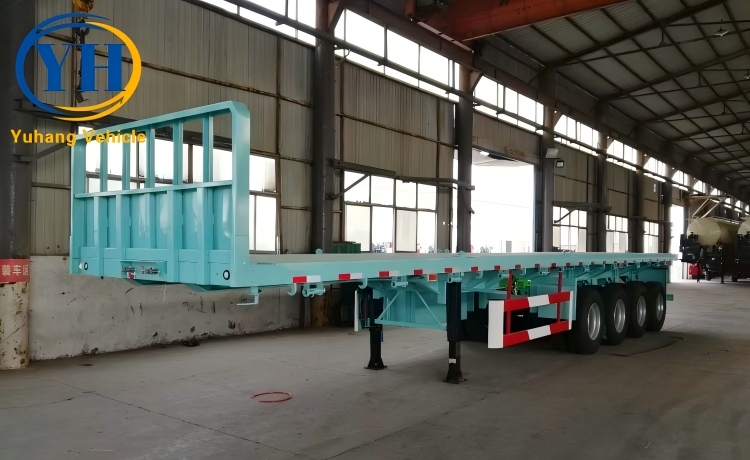

48 Foot Flatbed Container Trailer for Sale
48 Foot Flatbed Container Trailer for Sale
Advantage:
1. Our 48ft flatbed trailer adopts high-strength Q345B steel plate, which can make it have higher carrying capacity and longer service life.
2. The main beam runs through the space frame which is integrally welded with the cross beam to enhance the load strength of the vehicle and adapt to more rugged and complex road conditions.
3. The whole process of robot automatic welding technology, the welding seam is uniform and full, the solder joints are firm and reliable, the welding quality is high, and the appearance is beautiful.
4. Equipped with high-quality container twist locks to ensure a safer and more stable cargo transportation process.
5. The whole vehicle is treated with shot blasting and derusting, and sprayed with polyurethane paint, which is colorfast, corrosion-resistant, and environmentally friendly.
About Us:
With high-quality technology and favorable price, our flatbed semi trailer is loved by customers and purchased many times. If you want to know more information, please contact us.
Specification:
Model: 48 foot flatbed container trailer
Dimension(mm): 14000x2500x1500mm
Loading Capacity: 60-100 ton
Main Beam: height: 500mm, upper plate: 20mm, middle plate: 10mm, bottom plate: 25mm, material: Q345b steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm/4mm-thick checkered plate
Axle: 4 axle*13t/16t*FUWA/BPW brand
Tire: 16 units*12.00R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: mechanical suspension or air suspension
Spring Leaf: 90(w)mmx13(t)mmx10 layers or 100(w)mmx12(t)mmx12 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand or Chinese brand
Brake Chamber: WABCO relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4/8/12 sets (lifting or screw type)
Valve: WABCO valve
ABS: optional
Light: LED light
Voltage: 24V
Socket: 7-pin socket (for 7 wire harness)
Tool Box: 1mx0.5mx0.5m size
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
