Description:
The 40ft skeletal semi trailer is a vehicle specially designed for loading and transporting various containers. It can efficiently and quickly transport 1*40ft and 2*20ft standard containers.
YUHANG brand skeleton trailer can quickly load and unload containers, which greatly simplifies the operation process, reduces waiting time, and improves cargo turnover speed and work efficiency.
We have 20ft, 45ft, 48ft and 53ft skeletal trailers for sale, which can load 30-90 tons of cargo for you to choose. They all have good quality and strength to meet all your transportation needs.
At present, our various types of skeleton semi trailers have been exported to more than 40 countries, such as: Zambia, Tanzania, Zimbabwe, Malawi, Mauritius, and achieved a large number of customer use cases.

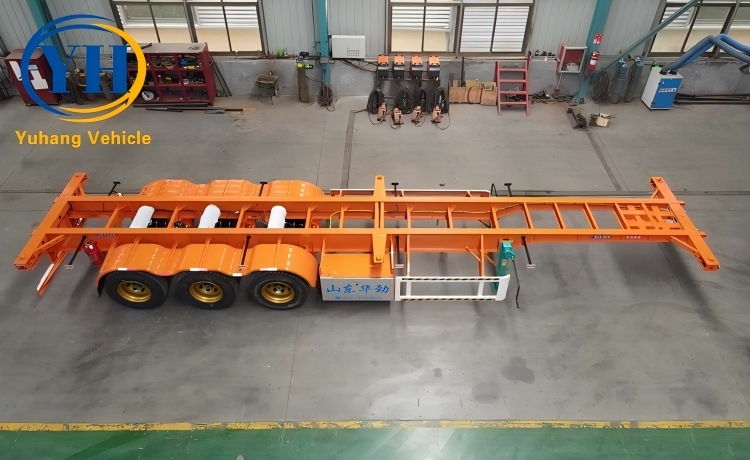

40Ft Skeletal Semi Trailer for Sale

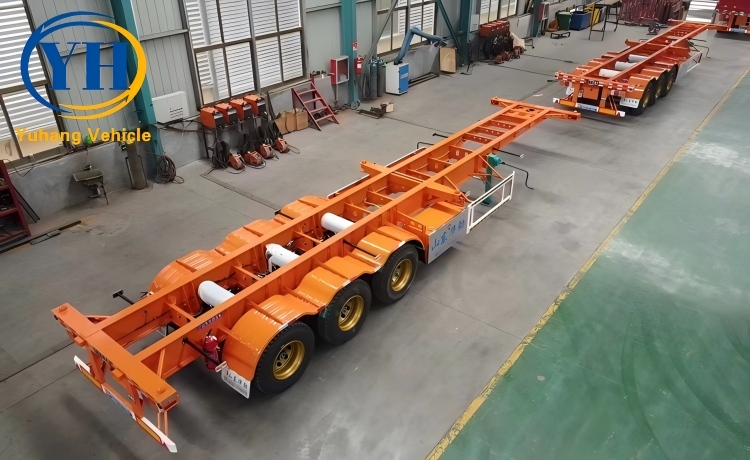

40Ft Skeletal Semi Trailer for Sale
40Ft Skeletal Semi Trailer for Sale
Advantages:
1. The main beam is made of Q345B high-strength steel, which has high bearing capacity and compressive performance, which ensures that the 40 foot skeletal semi trailer has the highest quality standard.
2. The fully automatic submerged arc welding technology of the whole vehicle makes the frame stronger and more durable, and can adapt to more complex, rugged and bad road conditions.
3. All spare parts are shot blasted and derusted, sprayed with polyurethane paint, corrosion-resistant, long service life and beautiful appearance.
4. Electrophoretic powder spraying and baking paint process, the whole vehicle has higher gloss, corrosion resistance, salt and alkali resistance, and the color of the vehicle is softer and more beautiful.
About Us:
If you are very interested in our 40ft skeletal semi trailer, please send an inquiry, we will reply at the first time.
Specification:
Dimension(mm): 12,500×2,500×1,500mm
Loading Capacity: 60t or customize
Axles: 3 axle*13T/16T, FUWA/BPW or other brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5
Suspension: mechanical suspension or air suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers
King Pin: 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand 28 tons (double-speed)
Main Beam: height: 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material: Q345B steel
Brake Chamber: WABCO relay valve
Twist Locks: 4/8/12 sets (lifting or screw type)
Valve: WABCO valve
ABS: optional
Light: LED light
Voltage: 24V
Socket: 7-pin socket (for 7 wire harness)
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m
Shipping Terms: transported by bulk carrier or container
