Description:
The 3 axle flat bed trailer with front wall is a vehicle specially used for transporting containers or other bulk goods between the inland and the dock.
Our 3 axle flatbed trailer can be used to transport 20ft/40ft/45ft/48ft containers, and are popular with customers because of their strong loading capacity and high transportation efficiency.
YUHANG factory ships directly to customers, there is no middleman to earn the price difference, 100% the lowest price, 100% quality assurance, to protect the rights and interests of customers to the greatest extent.
We have a technical team with more than 20 years of experience, can design and customize flatbed semi trailer according to your special transportation needs, and create more profit value for you.

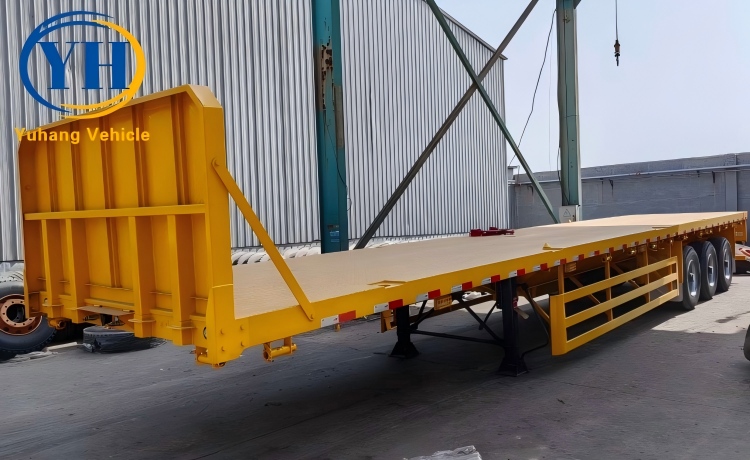

3 Axle Flat Bed Trailer with Front Wall for Sale

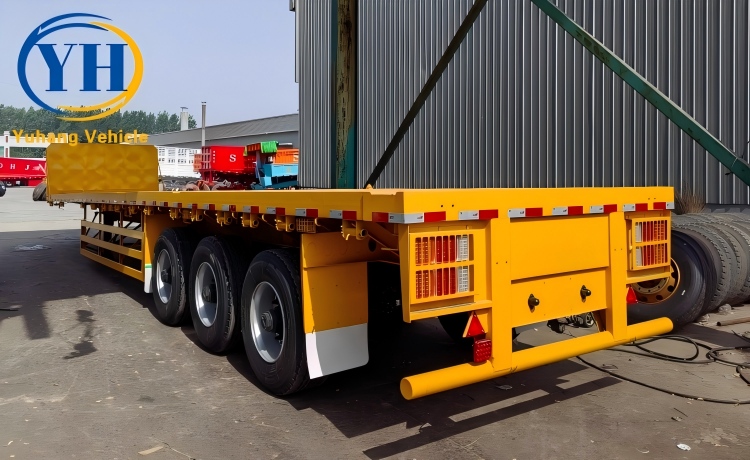

3 Axle Flat Bed Trailer with Front Wall for Sale

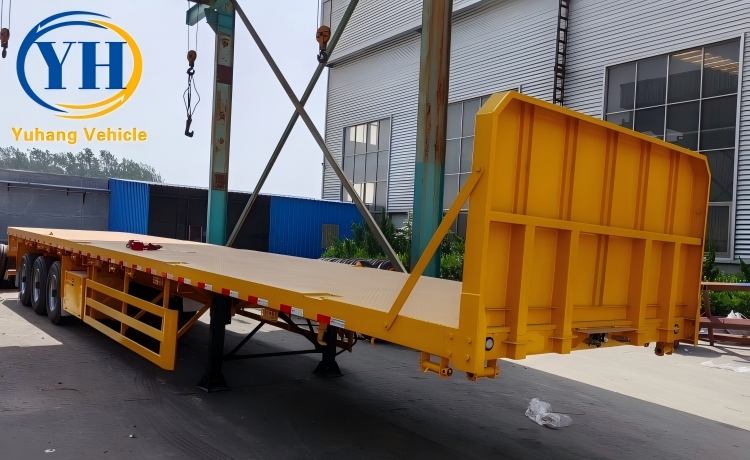

3 Axle Flat Bed Trailer with Front Wall for Sale
Advantage:
1. The main beam of the 3 axle flatbed trailer is made of high-strength overall uncut Q345B steel plate to ensure its more durable quality and longer service life.
2. The whole frame adopts automatic robot welding technology, the weld seam is uniform and full without flaws, the solder joints are firm and reliable, the welding stress is small, and there is no risk of deformation and fracture.
3. The thickened and widened heavy-duty mechanical suspension system has strong rigidity and good elasticity, which can greatly reduce the impact force and adapt to more complex road conditions such as: muddy, wet soil, and hills.
4. YUHANG brand container transport trailer fully absorb and digest the advantages of the same high-quality products at home and abroad, with reasonable design structure, simple operation, low investment cost, and can be used repeatedly for a long time.
Know Me:
YUHANG is the largest and most professional semi trailer manufacturer in China, we are strictly responsible for every flatbed trailer sold. If you have any questions, please feel free to contact us.
Specification:
Model: 3 axle flat bed trailer with front wall
Dimension(mm): 12500x2500x1500mm
Loading Capacity: 30-60 ton
Main Beam: Height: 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material: Q345b steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Axle: 3 axle*13t/16t*FUWA/ BPW brand
Tire: 12 unit*12.00R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: mechanical suspension or air suspension
Spring Leaf: 90(w)mmx13(t)mmx10 layers or 100(w)mmx12(t)mmx12 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand or Chinese famous brand
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4/8/12 sets (lifting or screw type)
Valve: WABCO valve
ABS: optional
Light: LED light
Voltage: 24V
Socket: 7-pin socket (for 7 wire harness)
Tool Box: 1mx0.5mx0.5m size
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
