Description:
Tri axle trailer with drop side is a tractor-powered vehicle, mainly used for transporting containers, vegetables, bagged cement, steel plates, construction materials and other bulk goods.
YUHANG cargo sidewall semi trailer has strong loading capacity, high transportation efficiency, simple and convenient operation, wide application range and low investment cost, and has become an important road transportation tool.
You can choose 2 axle, 3 axle, 4 axle, 5 axle sidewall trailers for sale, and its loading capacity is 30-120 tons, which can meet any of your transportation needs.
We have an experienced technical team that can provide design and customization services according to your special cargo types.

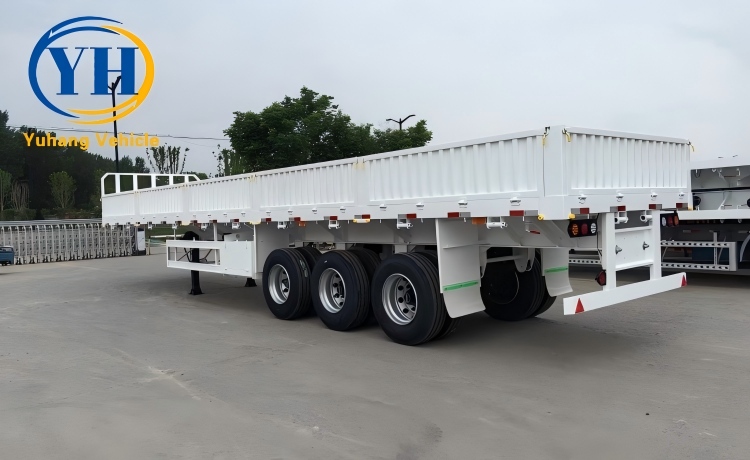

Tri Axle Trailer with Drop Side for Sale

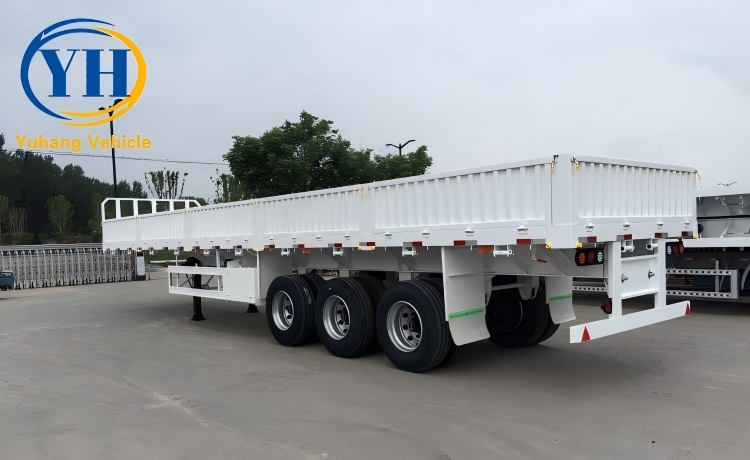

Tri Axle Trailer with Drop Side for Sale

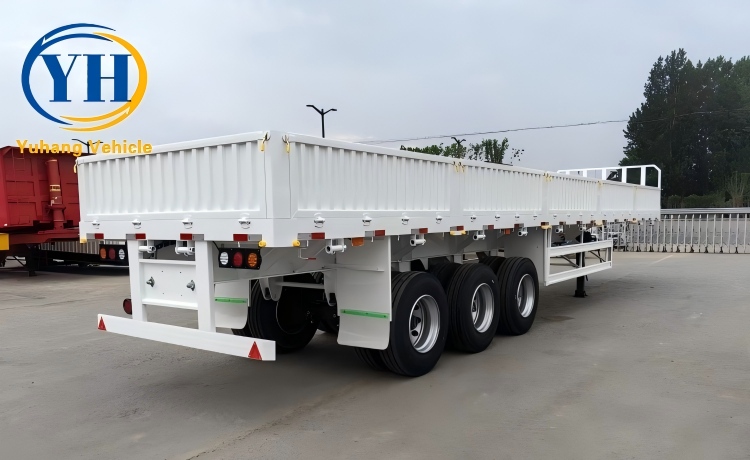

Tri Axle Trailer with Drop Side for Sale
Advantages:
1. The main beam is made of high-strength steel plate, which makes the tri axle sidewall trailer on the stronger in carrying capacity, longer in service life, and not deformed or damaged when fully loaded.
2. The automatic submerged arc welding technology is adopted to improve the anti-vibration, anti-distortion and anti-turbulence capabilities of the vehicle, which can meet the driving needs of different road conditions.
3. The bottom plate is a 3mm thick non-slip and wear-resistant checkered plate, which has good friction performance and ensures more stable and reliable bulk cargo transportation.
4. The whole vehicle is treated with shot blasting and rust removal, while eliminating welding stress, and spraying high-quality paint, which is corrosion-resistant and environmentally friendly.
5. The thickened and widened heavy-duty steel plate suspension system is installed on the chassis to effectively support the weight of the load and reduce the impact.
About Us:
You send an inquiry to YUHANG, and you can learn about different models of side wall semi trailers, including production process, performance test, packaging and transportation, customer feedback and other information.
Specifications:
Tare Weight: about 8.5 ton
Dimension(mm): 13,000×3,500×2,600mm (support customization)
Loading Capacity: 60 tons
Main Beam: height: 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material: Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
Axle: 3 axle*13t/14t/16t *FUWA/BPW or other brand
Suspension: mechanical suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100(w)mmx12(thickness)mmx12 layers
Tire: 12 units*12.00R22.5
Rim: 9.00-22.5 or 9.75-22.5
King Pin: 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand
Brake Chamber: WABCO RE 6 relay valve
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: optional
Light: LED light
Voltage: 24V
Socket: 7-pin socket (for 7 wire harness)
Tool Box: one set
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
