Description:
Tri axle skeleton semi trailer plays an important role in the modern logistics transportation industry, and its application range is very wide, and it is used to transport different sizes of containers or other bulk goods.
Our skeleton semi trailer has a reasonable design and structure, and is easy and convenient to operate. It can quickly and accurately transfer containers from one vehicle to another, greatly improving your work efficiency.
We sell a large number of skeleton semi trailers to Vietnam, Zambia, Zimbabwe, Tanzania, Mauritius and more than 40 other countries every year, and have accumulated many customer use cases and vehicle operation data.
YUHANG factory has an experienced technical team to provide you with design and customization services to ensure that our container transport trailers can better help you do business and create profit value for you.
Tri Axle Skeleton Semi Trailer for Sale
Tri Axle Skeleton Semi Trailer for Sale
Tri Axle Skeleton Semi Trailer for Sale
Advantages:
1. The main beam is made of Q345B high-strength steel plate to ensure stronger loading capacity, better compression resistance and longer service life.
2. The whole vehicle adopts fully automatic robot welding technology and double-sided welding, which further increases the bearing stress of the frame. The weld seam is uniform and full without flaws, and the solder joints are firm, safe and reliable, and there is no risk of deformation and fracture.

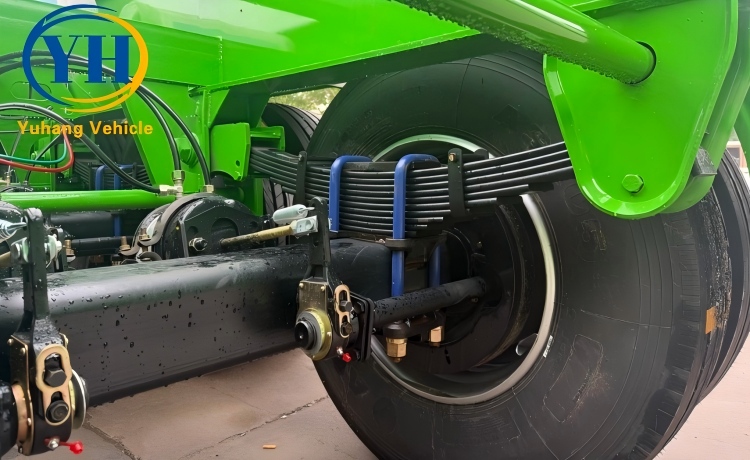

3. The heavy-duty leaf spring suspension is used to support the load, reduce the impact force, improve the anti-vibration and anti-turbulence ability, and can meet more complex and rough road conditions.
4. All skeleton semi trailers sold will go through the factory’s internal quality test and performance test to protect the rights and interests of customers and provide timely after-sales service.
About Us:
Please do not hesitate to contact us, we will provide you with more skeleton semi trailer related information, such as: price, drawing, photo, video, feedback.
Specification:
Dimension(mm): 12,500×2,500×1,500mm
Loading: about 60 ton
Axles: 3 axle*13T/16T, FUWA/BPW or china other brand
Tire: 12 units*12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: mechanical suspension
Spring Leaf: 90(W)mmx13(thickness)mmx10 layers
King Pin: 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST 28 tons (double-speed)
Main Beam: height: 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material:Q345B steel
Brake Chamber: WABCO relay valve

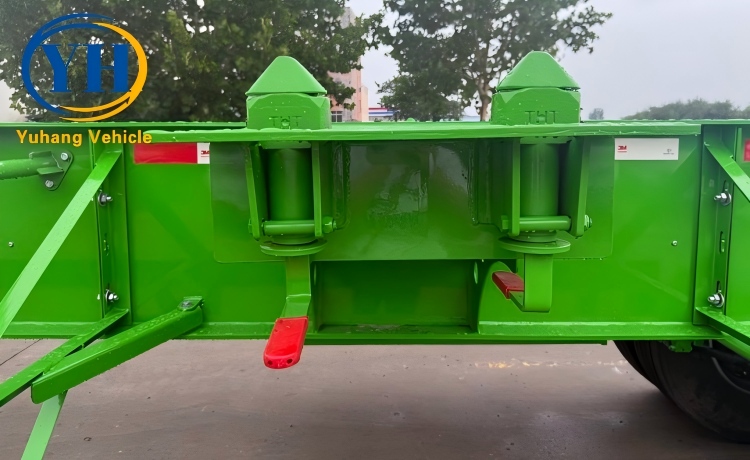

Twist Locks: 4/8/12 sets (lifting or screw type)
Valve: WABCO valve
ABS: optional
Light: LED light
Voltage: 24V
Socket (Receptacle): 7-pin socket (for 7 wire harness)
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m
Shipping Terms: by the bulk carrier or 48ft container
