60 Ton Drop Side Trailer

YUHANG is a professional 60 ton drop side trailer manufacturer and exporter from China, we can design and customize cargo sidewall semi trailer according to your special transportation needs.

Manufacturer: YUHANG VEHICLE

Model: 60 ton drop side trailer

Material: High strength steel plate

Delivery Date: 10-25 days

Application: Transport container, building materials and other bulk cargos

Description:

The 60 ton drop side trailer is one of our very popular vehicle models, mainly used to transport bagged cement, ore, steel plate materials, vegetables, grain, daily necessities and other bulk goods.

YUHANG brand cargo sidewall semi trailer has strong loading capacity, high transportation efficiency, reasonable design structure, simple and flexible operation, wide application range, and has become an important road transportation tool.

The side wall structure style and height of our sidewall semi trailer can be designed and customized according to actual needs to meet your loading, unloading and transportation of different types of goods.

We are a trailer entity manufacturing factory, different from simple trading companies, there is no middleman to earn the price difference, 100% lowest price discount, 100% quality assurance.

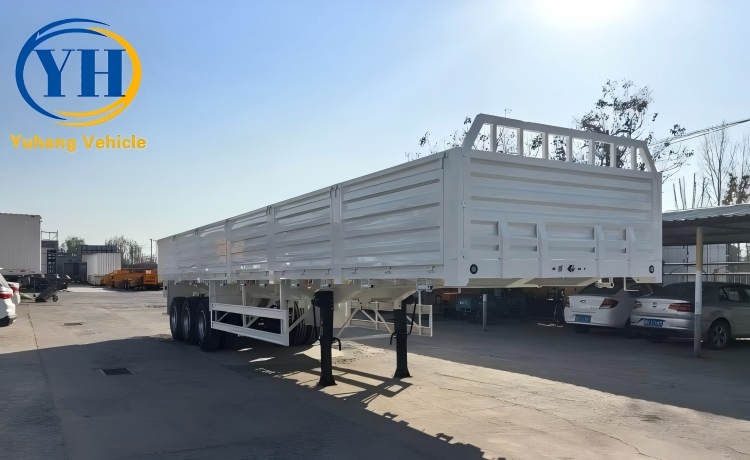

2025080106515017

60 Ton Drop Side Trailer for Sale

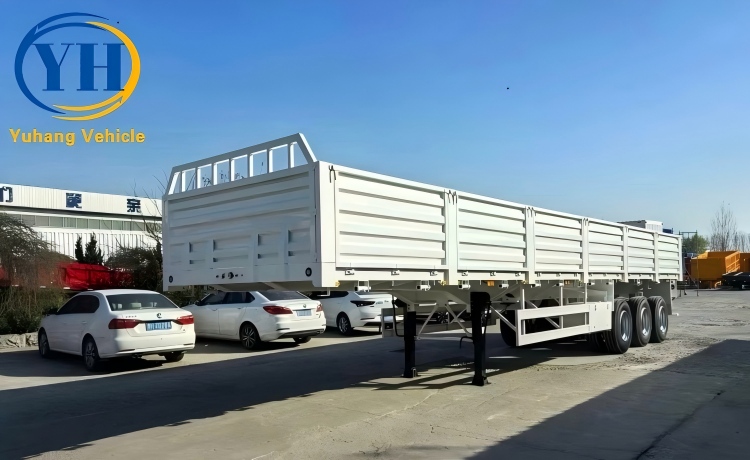

2025080106515246

60 Ton Drop Side Trailer for Sale

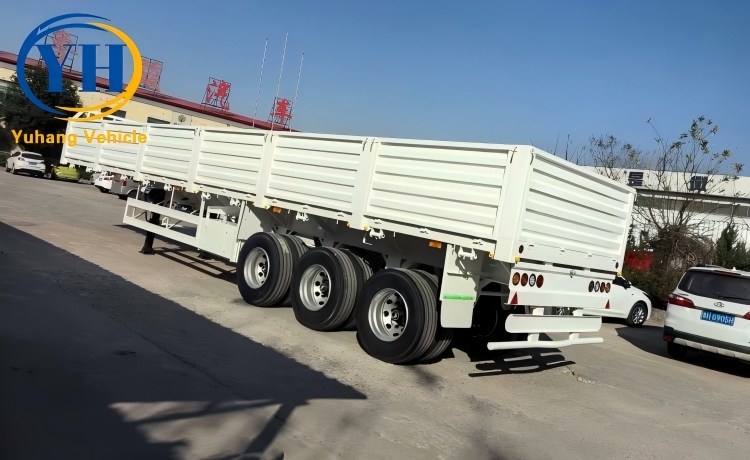

2025080106514889

60 Ton Drop Side Trailer for Sale

Advantages:

1. The main beam is made of high-strength steel plate to ensure the long-term and stable structural performance of the 60 ton drop side trailer, which can meet the loading requirements of different road conditions.

2. All accessories are selected from world-renowned brands, which improves the working efficiency of the vehicle, reduces the maintenance cost, and increases the customer’s good experience.

3. Electrophoretic powder coating and baking process, the whole vehicle has high gloss, corrosion resistance and beautiful appearance.

4. YUHANG factory has a fully intelligent modernized sidewall cargo trailer production line, which has a short manufacturing cycle and protects the actual rights and interests of customers.

About Us:

At present, our cargo sidewall trailers have been successfully exported to more than 50 countries in Southeast Asia, Africa, the Middle East, and South America, and have obtained a large number of customer success stories and safe operation data. Please contact us for the latest quotation.

Specification:

Tare Weight: about 8.5 ton

Dimension(mm): 13,000×3,500×2,600mm or customize

Loading Capacity: 60 ton

Main Beam: height: 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Axle: 3 axle*13t/14t/16t *FUWA/BPW or other brand

Suspension: mechanical suspension

Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100(w)mmx12(thickness)mmx12 layers

Tire: 12 units*12.00R22.5

Rim: 9.00-22.5 or 9.75-22.5

King Pin: 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand or China brand

Brake Chamber: WABCO RE 6 relay valve

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve

ABS: optional

Light: LED light

Voltage: 24V

Socket: 7-pin socket (for 7 wire harness)

Tool Box: one set

Painting: 1 layer of anticorrosive primer and 2 layers of top coats
