Description:
The 50 ton side board trailer is developed by adding side board on the basis of the flatbed semi trailer. It is our very popular model and is mainly used to transport various bulk goods.
The main structure of the sidewall cargo semi trailer is: the frame composed of the main beam and the beam, the bottom plate, the side boards, the suspension, the axle, the tire, the brake system, and the electrical system.
YUHANG brand sidewall trailer can be used to load and transport standard containers of 20 feet, 40 feet, 45 feet and 53 feet after being installed with twist locks.
We can design and customize sidewall truck trailers to suit your specific haulage needs, adapt to different road conditions and comply with local regulations.

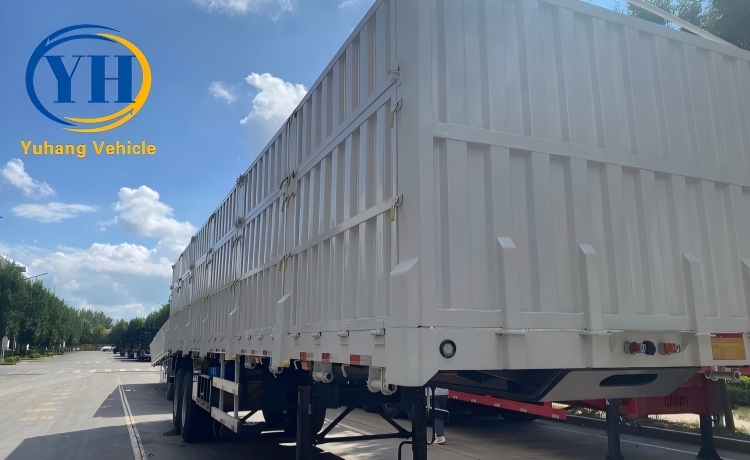

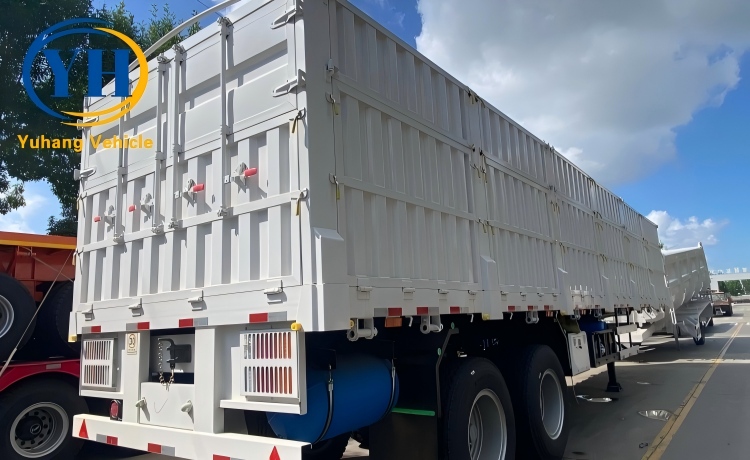

50 Ton Side Board Trailer for Sale
50 Ton Side Board Trailer for Sale
50 Ton Side Board Trailer for Sale
Advantages:
1. YUHANG uses high-quality high-strength Q345B steel plate to manufacture the side board trailer, which makes it have higher loading capacity and longer service life.
2. The whole vehicle adopts advanced finite element analysis, modular design, laser cutting machine, robot welding and other intelligent equipment, and strictly monitors the whole process to ensure that every sidewall trailer is a high-quality product.
3. The bottom plate is a 3mm thick anti-skid and wear-resistant checkered plate, which has passed international certification standards, making it safer and more stable when transporting bulk goods.
4. All components are of world-renowned brands, with long working cycle and low maintenance cost.
5. Electrophoretic powder spraying and baking process, the whole vehicle has full gloss, corrosion resistance and more beautiful appearance.
About Us:
You can learn about different types of sidewall semi trailers (such as: 3 axle cargo sidewall trailer, 4 axle sidewall truck trailer, 80 ton sidewall trailers). Please contact us to get the best price.
Specification:
Tare Weight: about 7.5 ton
Dimension(mm): 13,000×3,500×2,600mm
Loading Capacity: 50 tons
Main Beam: height: 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material: Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
Axle: 3 axle*13t/14t/16t *FUWA/BPW or other brand
Suspension: mechanical suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100(w)mmx12(thickness)mmx12 layers
Tire: 12 units*12.00R22.5
Rim: 9.00-22.5 or 9.75-22.5
King Pin: 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand or Chinese brand
Brake Chamber: WABCO RE 6 relay valve
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: optional
Light: LED light
Voltage: 24V
Socket: 7-pin socket (for 7 wire harness)
Tool Box: one set
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
