Description:
The 40ft side wall trailer is a vehicle powered by a tractor, which can be used to transport bagged grain, vegetables, steel bars, building materials, daily necessities, and is a very important road transport tool.
We have strong and durable 2 axle, 3 axle, 4 axle sidewall cargo trailers for sale with load capacity of 30/40/50/60/80/100 tons for you to choose.
Our sidewall semi trailer has many advantages, such as: reasonable design structure, strong loading capacity, high transportation efficiency, convenient loading and unloading of goods, and low investment cost.
YUHANG can design and customize side wall trailers according to your special transportation needs. Different shapes and different loading levels can meet more complex road conditions.

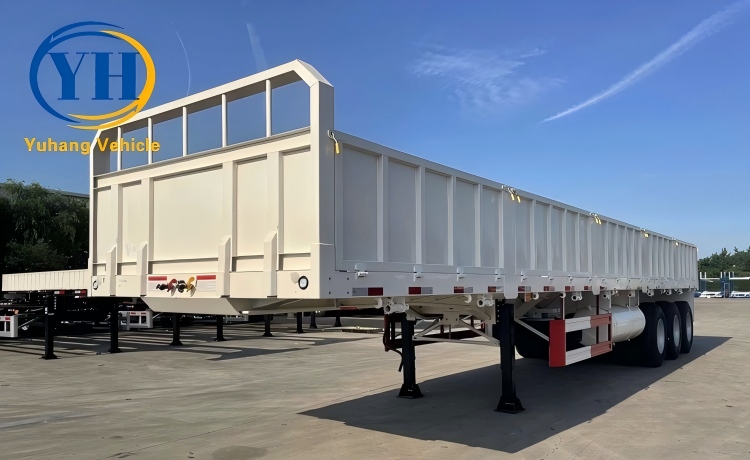

40Ft Side Wall Trailer for Sale

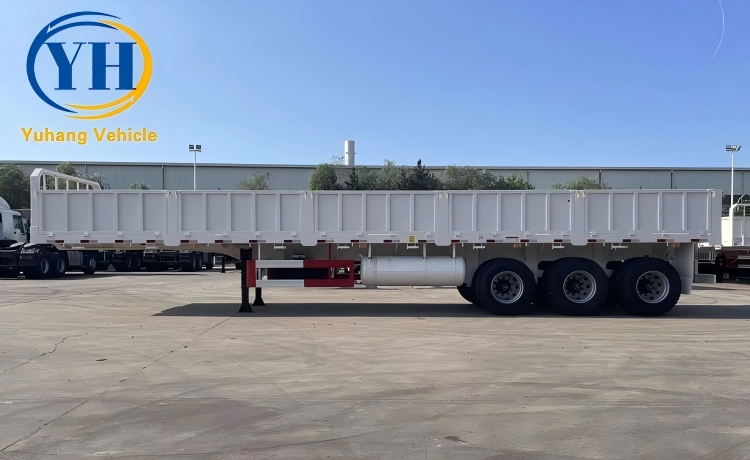

40Ft Side Wall Trailer for Sale

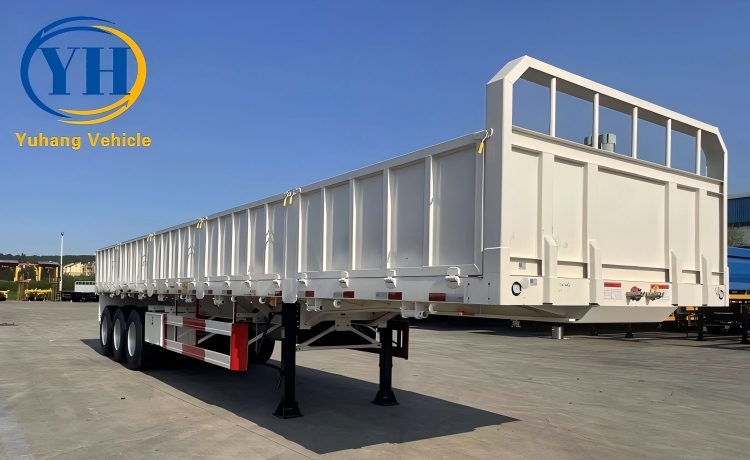

40Ft Side Wall Trailer for Sale
Advantages:
1. The use of high-quality steel plate material and the latest production technology can make the side wall trailer have higher loading capacity and longer service life.
2. The whole vehicle adopts automatic submerged arc welding technology to weld the main beam, the welding quality is guaranteed, the vehicle is stronger, durable, wear-resistant, and the transportation performance is stable.
3. The side voards are reinforced to prevent the sidewalls from expanding, and a variety of door opening design structures can meet the loading, unloading and transportation requirements of different types of goods.
4. Wax is sprayed during transportation to prevent the invasion of seawater and rainwater and to resist corrosion.
About Us:
YUHANG has a strict quality control system to ensure that every sidewall cargo trailer is 100% qualified.
Welcome to contact us!
Specifications:
Tare Weight: about 7.5 ton
Dimension(mm): 13,000×3,500×2,600mm
Loading Capacity: 60 ton
Main Beam: height: 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material: Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
Axle: 3 axle*13t/14t/16t*FUWA/BPW or other brand
Suspension: mechanical suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100(w)mmx12(thickness)mmx12 layers
Tire: 12 units*12.00R22.5
Rim: 9.00-22.5 or 9.75-22.5
King Pin: 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand or China brand
Brake Chamber: WABCO RE 6 relay valve
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: optional
Light: LED light
Voltage: 24V
Socket: 7-pin socket (for 7 wire harness)
Tool Box: one set
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
