Description:

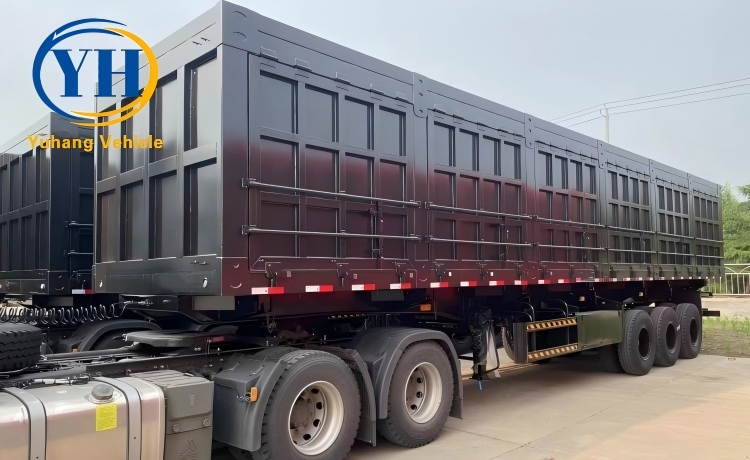

34 ton side tipper trailer is also called side dump semi trailer. Its main structure consists of a vehicle chassis, a box body and a hydraulic lifting system. It is widely used in construction, agriculture and transportation.
Side dump trailer manufactured by us can be used to transport ore, coal, wet soil, earthwork, construction materials and other bulk goods, and have become important transport vehicles at present.
The working principle of our 34 ton side tipper trailer is that the PTO supplies oil to the hydraulic cylinder, lifts the box body to the designed angle, and the goods slide out naturally, and the unloading speed is fast, which saves labor and improves work efficiency for you.
YUHANG factory has different types of side dump truck trailers for sale, the loading capacity is 34 ton, 50 ton, 60 ton, 80 ton, 100 ton, 120 ton for you to choose. Different specifications have different prices.
Advantages:
1. The main beam is made of high-strength Q345B steel plate, which is stronger and more durable, so that it has a higher loading capacity and a longer service life.
2. The frame adopts fully automatic submerged arc welding technology, the solder joints are stable, firm, safe and reliable, with good toughness, no deformation and breakage, and can adapt to more complex and bad road conditions.
3. All components are world-renowned brands. The axles, suspension systems, tires, and braking systems are stable and reliable, and can be used repeatedly for a long time to ensure safe operation of the vehicle.
4. The whole vehicle is sprayed with anti-rust primer, and then sprayed with polyurethane paint, which is corrosion-resistant, has strong paint adhesion, will not fall off, and has a beautiful appearance.
About Us:
Our 34 ton side tipper trailer has many advantages and features, if you want to know more information, please contact us to get the latest exclusive quotation.
Specification:
Dimension: 11,500mm*2,500mm*3,500mm
Main Beam: height: 480mm, upper plate: 14mm, middle plate: 8mm, lower plate: 16mm, material: T700 steel
Bottom Platform: 4mm checkered plate
Sidewall Thickness: 4mm
Load Capacity: 34 ton or customize
End Plate: 8mm
Lifting System: HYVA hydraulic cylinder
Axle: 13T/16T*FUWA/BPW
Rim: 8.0-20
Tire: 8.25R20/12R22.5
Suspension: heavy duty mechanical suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers
King Pin: 2.0 or 3.5inch (bolted or welded type)
Landing Gear: JOST brand
ABS: optional
Valve: WABCO valve
Light: LED light
Voltage: 24V
Tool Box: 1 set
