Description:
The 3 axle sidewall cargo semi trailer has a wide range of applications and can be used to transport containers and various bulk products and materials, such as: grain, steel bars, steel plates, vegetables, ore, coal.
We have 2 axle, 3 axle, 4 axle sidewall truck trailer for sale, with a loading capacity of 30-120 tons for you to choose, which can meet all your transportation needs.
YUHANG factory has an experienced technical team to provide you with comprehensive sidewall trailer design drawings, manufacturing processes, packaging and transportation solutions.
The side wall heights of our sidewall cargo trailers can be adjusted or customized for special cargo types. Looking forward to your inquiry and in-depth communication with us.

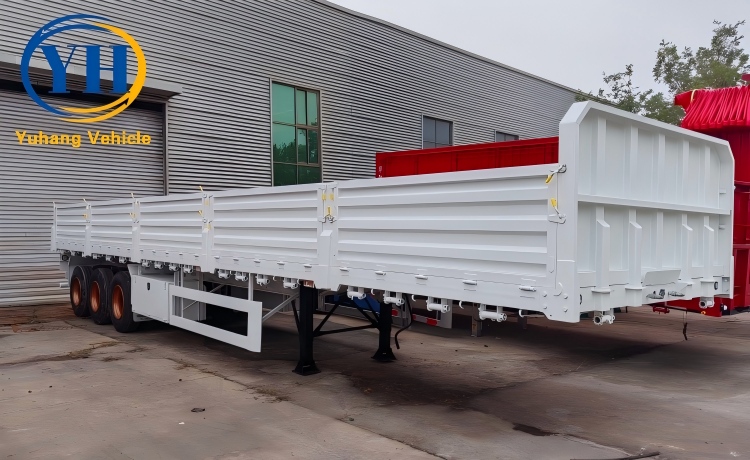

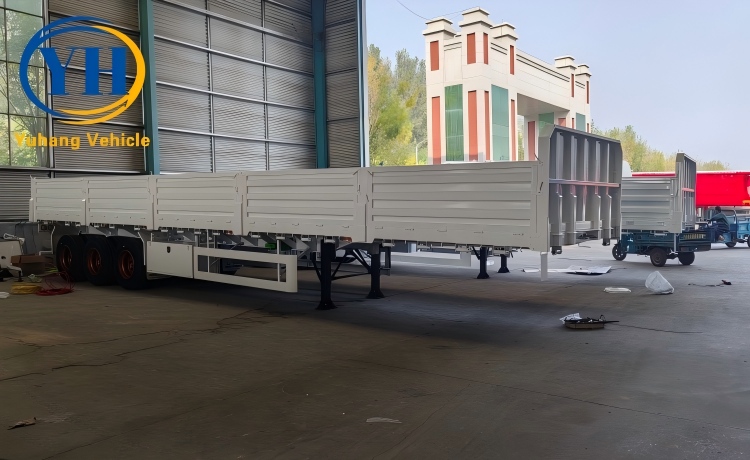

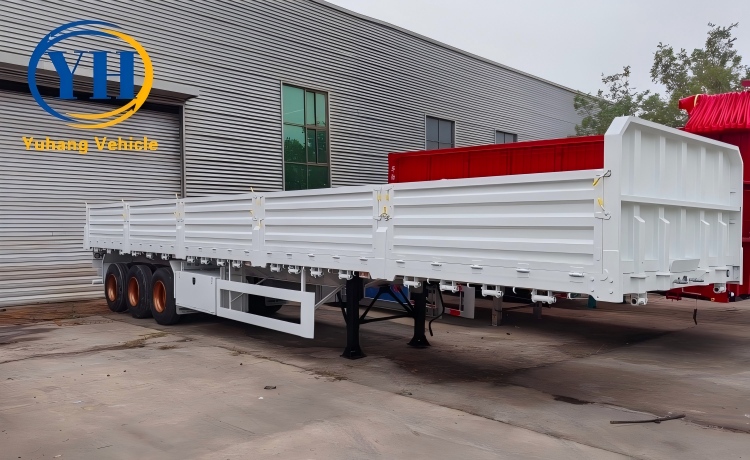

3 Axle Sidewall Cargo Semi Trailer for Sale
3 Axle Sidewall Cargo Semi Trailer for Sale
3 Axle Sidewall Cargo Semi Trailer for Sale
Advantages:
1. The 3 axle sidewall cargo semi trailer is made of high-strength steel plate, which makes it have stronger loading capacity and longer service life.
2. The fully automatic robot automatically welds the frame, the weld seam is uniform and full without flaws, the solder joints are firm and reliable, the welding quality is high, and there will be no deformation or breakage.
3. The bottom plate of the vehicle is a 3mm thick anti-skid and wear-resistant checkered plate, which increases friction and ensures safer and more stable cargo transportation.
4. All spare parts of the vehicle are shot blasted and derusted, and sprayed with polyurethane paint, which is corrosion-resistant, durable, and environmentally friendly.
About Us:
If you have any questions or suggestions about sidewall semi trailer, please send an inquiry, we will get back to you as soon as possible.
Specification:
Tare Weight: about 8 ton
Dimension(mm): 12,500×2,800×2,900mm
Loading Capacity: 60 ton
Main Beam: height: 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material: Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
Axle: 3 axles*13t/14t/16t *FUWA/BPW or other brand
Suspension: mechanical suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers or 100(w)mmx12(thickness)mmx12 layers
Tire: 12 units*12.00R22.5
Rim: 9.00-22.5 or 9.75-22.5
King Pin: 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand or Chinese brand
Brake Chamber: WABCO RE 6 relay valve
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: optional
Light: LED light
Voltage: 24V
Socket: 7-pin Socket (for 7 wire harness)
Tool Box: one set
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
