Description:
The 20 foot semi flatbed trailer is mainly used to transport a large number of containers or bulk goods. It has stable performance and can be used repeatedly for a long time. It is favored by customers.
YUHANG engineers will carefully design flatbed truck trailer to meet the height and loading capacity required by customers, and can quickly and safely transport containers from one place to another.
Our flatbed trailer has no side walls, no roof, and is actually a bare working platform. The length can be customized according to customer needs, such as: 20 feet, 40 feet, 48 feet and 53 feet.
The bottom of each flatbed trailer is equipped with twist locks for fixing the container to ensure safe, reliable, efficient and convenient transportation.

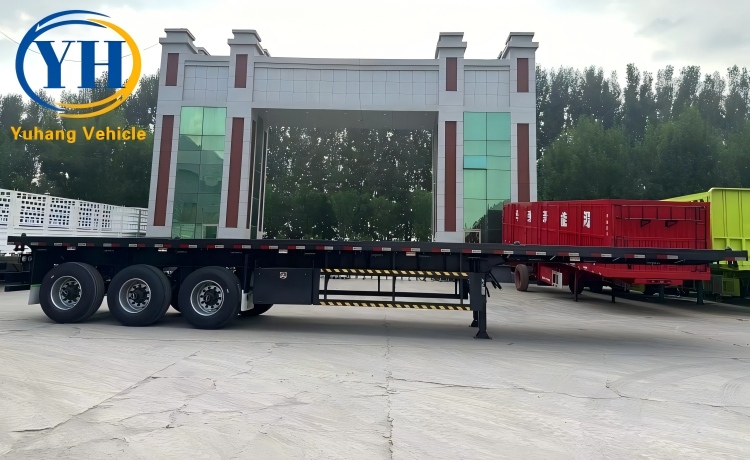

20 Foot Semi Flatbed Trailer for Sale

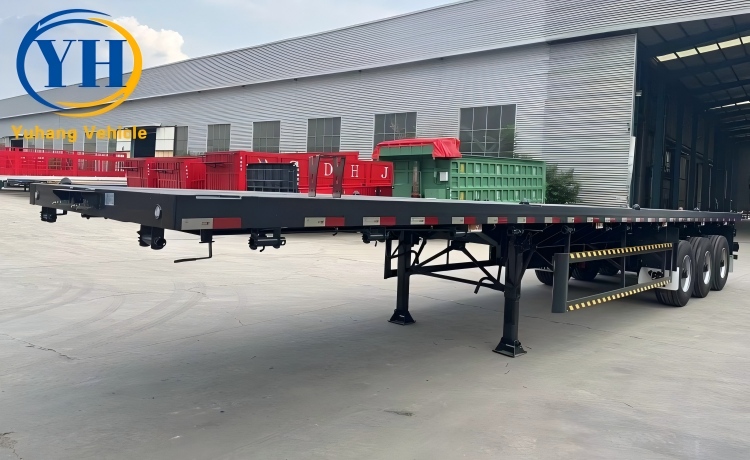

20 Foot Semi Flatbed Trailer for Sale

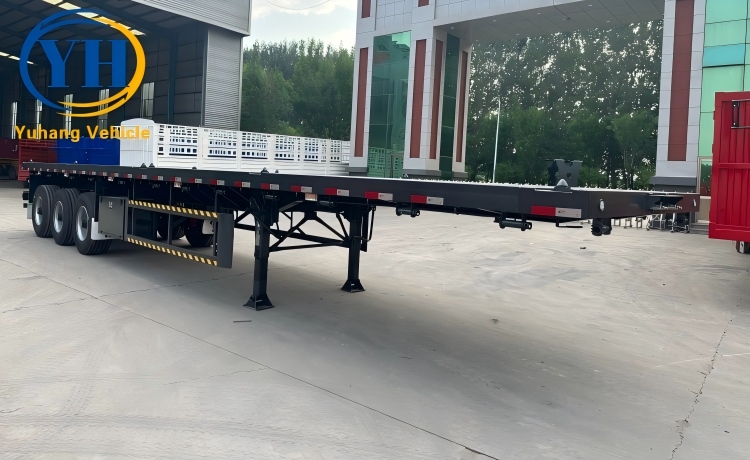

20 Foot Semi Flatbed Trailer for Sale
Advantages:
A. The 20 foot semi flatbed trailer is made of high-quality high-strength steel plates to ensure its anti-deformation, anti-vibration and anti-torsion capabilities.
B: The whole vehicle adopts fully automatic submerged arc welding technology to weld and fix the beam and longitudinal beam on both sides to make the frame more durable.
C: The YUHANG brand flatbed trailer adopts thickened mechanical suspension system, which increases the vehicle’s heavy load and compression resistance, and has low maintenance cost.
D: 12R22.5 vacuum wear-resistant tires have better heat dissipation performance and can safely drive more than 300,000 kilometers.
E: Polyurethane coating can effectively protect the vehicle from rust, corrosion resistance, beautiful and practical appearance, and prolong the service life.
About Us:
If you want to get more picture, video, price, technical drawing, customer case of semi flatbed trailer, please don’t hesitate to send an inquiry.
Specifications:
English Brand: YUHANG
Vehicle Name: 20 foot semi flatbed trailer
Dimensions: 12500*2500*1550mm
Weight: 7 ton
Main Beams: Q345B, upper flange:14mm, middle:8mm, down:16mm
Platform: 3mm thickness carbon steel
Landing Gear: China brand or JOST brand
Axle: 3 axle*13t/16t*FUWA/BPW/HUAJIN brand
Tire: 12R22.5*Triangle/Hankook/Bridgestone brand
Suspension: mechanical suspension or air suspension
Spring Leaf: 90(w)mmx13(t)mmx10 layers or 100mmx12mmx12 layers
Twist Locks: 4,8,12 sets (lifting or screw type)
King Pin: JOST brand 2.0 or 3.5 inch
Light: LED light
ABS: optional
Brake System: WABCO Valve with big chamber
