Description:
YUHANG brand 2 axle sidewall semi trailer is widely used in the logistics and transportation industry, mainly used to transport bagged cement, steel plate, ore, fruit, vegetable, daily necessities or other bulk goods.
We have 2 axle, 3 axle, 4 axle, 5 axle sidewall cargo semi trailer for sale, the loading capacity is 30-90 tons for you to choose, the lowest price from the factory, and the quality is guaranteed.
The height of the sidewall can be customized, and the sidewall style has horizontal and vertical corrugated structure, which can meet any loading needs of customers.
Our sidewall trailer can also be used to transport containers after being installed with twist locks, which can truly achieve multiple purposes and create more profit value for you.

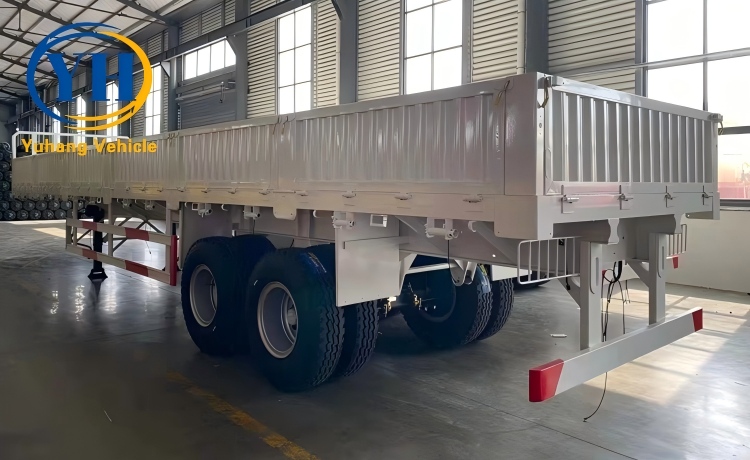

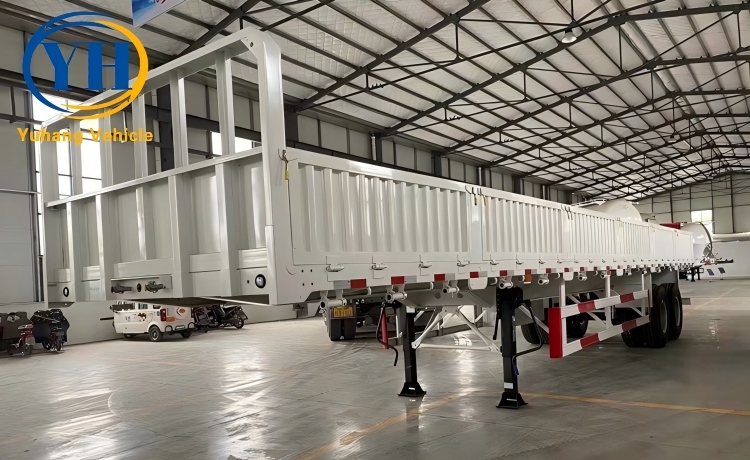

2 Axle Sidewall Semi Trailer for Sale
2 Axle Sidewall Semi Trailer for Sale
2 Axle Sidewall Semi Trailer for Sale
Advantage:
1. The main beam of our 2 axle sidewall semi trailer adopts high-strength Q345B steel plate, which makes it have higher loading capacity and longer service life.
2. The space frame structure of the frame is integrally welded by the beam and the longitudinal beam, which is stronger and more durable, without the risk of deformation and fracture.
3. The whole vehicle is sprayed with polyurethane paint, which has a long adhesion time, corrosion resistance, beautiful appearance, and environmental protection.
4. All accessories are selected from world-renowned factories. The vehicle has a long working cycle, high efficiency and low maintenance cost.
About Us:
The cargo sidewall trailer manufactured by YUHANG factory is more safer, more efficient and more faster. If you want to get more photos, videos, technical design drawings, customer use cases, packaging styles, please contact us.
Specification:
Tare Weight: about 7 ton
Dimension(mm): 13,000×3,500×2,600mm
Loading Capacity: 50 tons or customize
Main Beam: height: 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material: Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
Axle: 2 axle*13t/14t/16t *FUWA/BPW or other brand
Suspension: mechanical suspension
Spring Leaf: 90(w)mmx13(t)mmx10 layers or 100(w)mmx12(t)mmx12 layers
Tire: 8 unit*12.00R22.5
Rim: 9.00-22.5 or 9.75-22.5
King Pin: 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand or Chinese brand
Brake Chamber: WABCO RE 6 relay valve
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve
ABS: optional
Light: LED light
Voltage: 24V
Socket: 7-pin socket (for 7 wire harness)
Tool Box: one set
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
